Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button
Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
Features
Wireless N speed up to 450Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and voice over Internet
MIMO technology provides robust high-bandwidth wireless Tx/Rx capability at further range
CCA improves wireless performance while automatically avoiding channel conflict

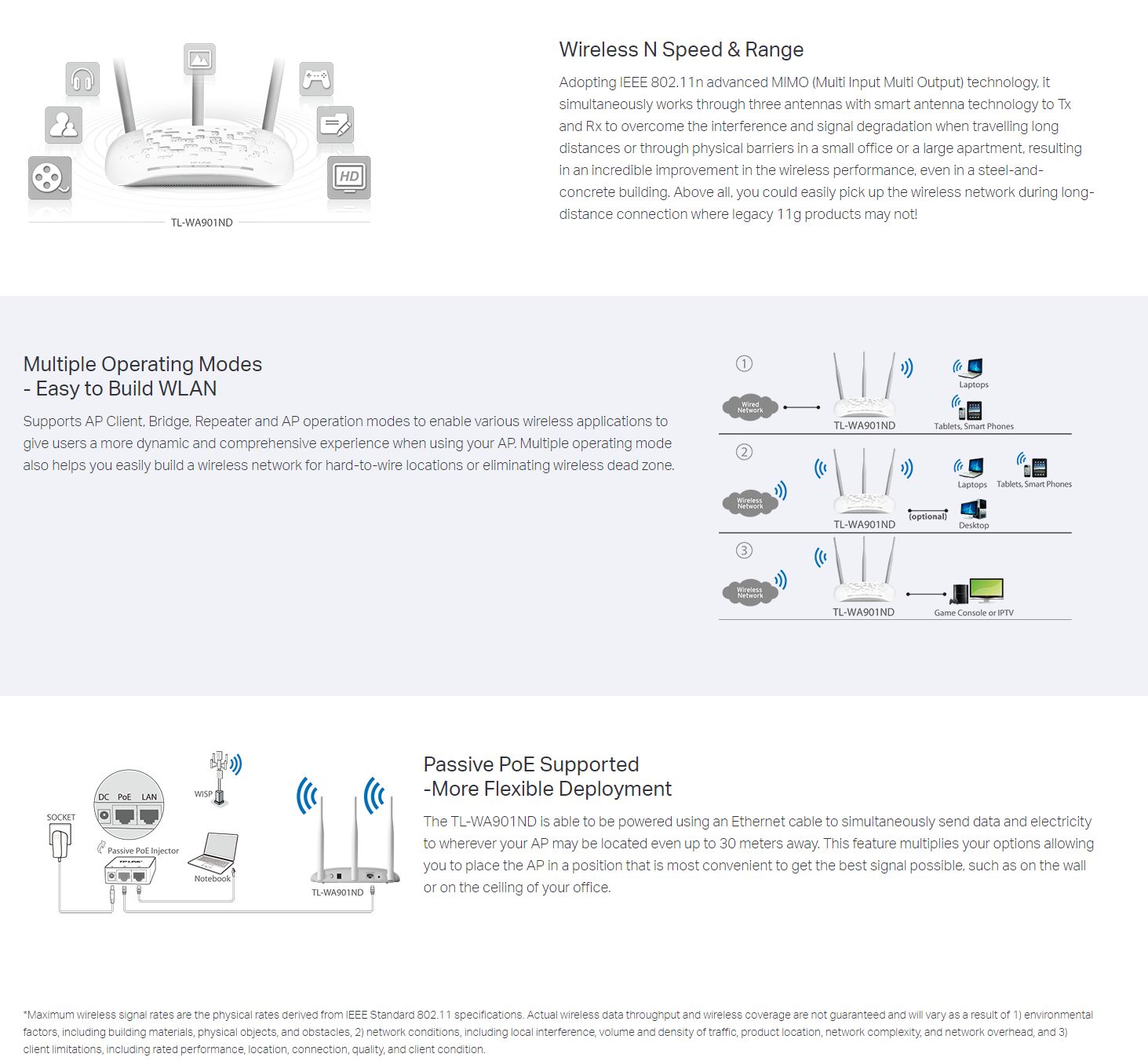

Supports multiple operating modes (Access Point, Client, Universal/WDS Repeater, Point to Point, Point to Multi-point)
Smart Antenna Technology delivers uninterrupted wireless signal to any wireless device, anywhere in your home or small office
Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button
Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming
Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
Up to 4 SSIDs and VLAN support, it allows networks administrator to segregate different services or applications to different designated users
WPA-PSK/WPA2-PSK encryptions provide your network with active defense against security threats
Backward compatible with 802.11b/g products
External detachable antennas allow for better alignment and stronger antenna upgrades
Wall mounted available, also can be placed horizontally on a table or desk
HARDWARE FEATURES
Interface
One 10/100M Ethernet Port(RJ45) Support Passive PoE
Button
WPS/Reset, Power On/Off
External Power Supply
9VDC/0.85A
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )
7.67*5.12*1.43 in.( 194.82*129.93*36.2mm)
Antenna Type
3*5dBi Detachable Omni Directional (RP-SMA)
Power Consumption
5.8W
WIRELESS FEATURES
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Transmit Power
<20dbm(eirp)
Wireless Modes
Access Point /Repeater (Range Extender)/ Bridge with AP/ Client/Multi-SSID/
Wireless Functions
Enable/Disable Wireless Radio; WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function
