WIRELESS |
|
Standards | • IEEE 802.11ax 6 GHz • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AXE16000 • 6 GHz: 4804 Mbps (802.11ax) • 5 GHz-1: 4804 Mbps (802.11ax) • 5 GHz-2: 4804 Mbps (802.11ax) • 2.4 GHz: 1148 Mbps (802.11ax) |
WiFi Range | 4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
WiFi Capacity | Very High Quad-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 16 Streams Connect your devices to more bandwidth |
Working Modes | • Router Mode • Access Point Mode |
HARDWARE |
|
Processor | 2.0 GHz Quad-Core CPU |
Ethernet Ports | • 1× 10 Gbps RJ45/SFP+ Combo WAN/LAN Port • 1× 10 Gbps WAN/LAN Port • 1× 2.5 Gbps WAN/LAN Port • 4× 1 Gbps LAN Ports |
USB Support | 1× USB 3.0 Port • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
Buttons | • Power On/Off Button • Wi-Fi On/Off Button • LED On/Off Button • WPS Button • Reset Button |
Power | 12 V ⎓ 5 A |
SECURITY |
|
WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
|
|
Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server |
VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client |
SOFTWARE |
|
Protocols | • IPv4 • IPv6 |
Service Kits | HomeShield |
OneMeshâ„¢ | OneMeshâ„¢ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMeshâ„¢ helps you create a more flexible network that covers your entire home with TP-Link OneMeshâ„¢ products. |
Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
Quality of Service | QoS by Device |
Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
DHCP | • Address Reservation • DHCP Client List • Server |
DDNS | • TP-Link • NO-IP • DynDNS |
Management | • Tether App • Webpage |
OTHER |
|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
TEST DATA |
|
WiFi Transmission Power | FCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz), ≤ 25 dBm (6 GHz) |
WiFi Reception Sensitivity | 2.4 GHz: 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -95dBm, 11ax HE40 MCS11: -64dBm 5 GHz-1: 11ax HE20 MCS0: -93dBm, 11ax HE20 MCS11: -62dBm 11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -60dBm 11ax HE80 MCS0: -88dBm, 11ax HE80 MCS11: -57dBm 11ax HE160 MCS0: -82dBm, 11ax HE160 MCS11: -52dBm 5 GHz-2: 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -59dBm 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm 6 GHz: 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -58dBm 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm |
PHYSICAL |
|
Dimensions (W×D×H) | 9.1 × 9.1 × 2.7 in (232 × 232 × 68 mm) |

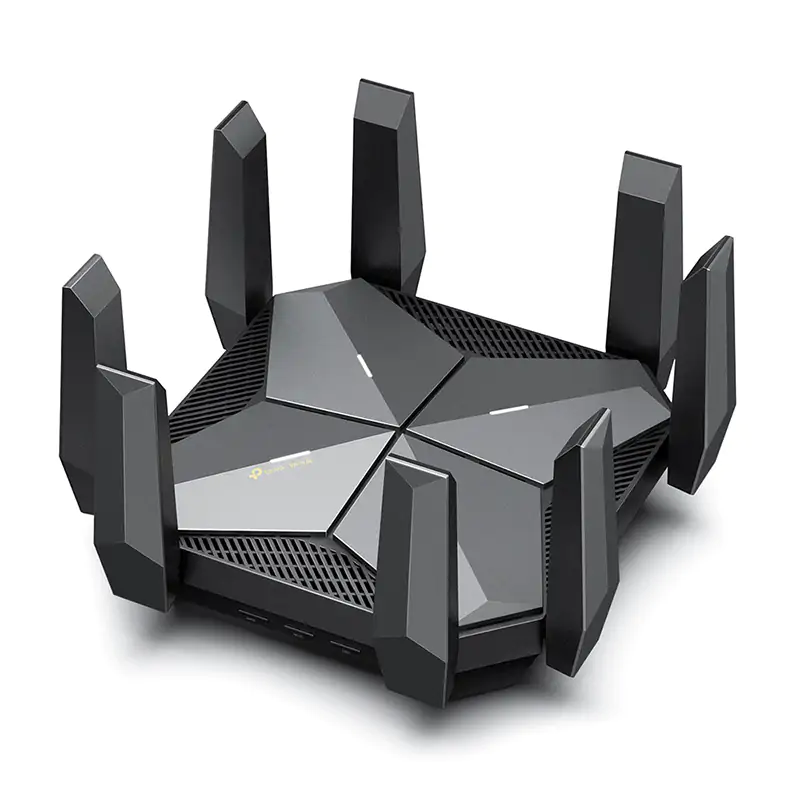

Package Contents | • Wi-Fi Router Archer AXE300 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
