External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate
7.44 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 40 W
Mac Address Table
2K
Jumbo Frame
16 KB
Switching Capacity
10 Gbps
Dimensions ( W x D x H )
3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption
4.12 W (220/50 Hz. no PD connected)
47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation
14.05 BTU/h (no PD connected)
161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents

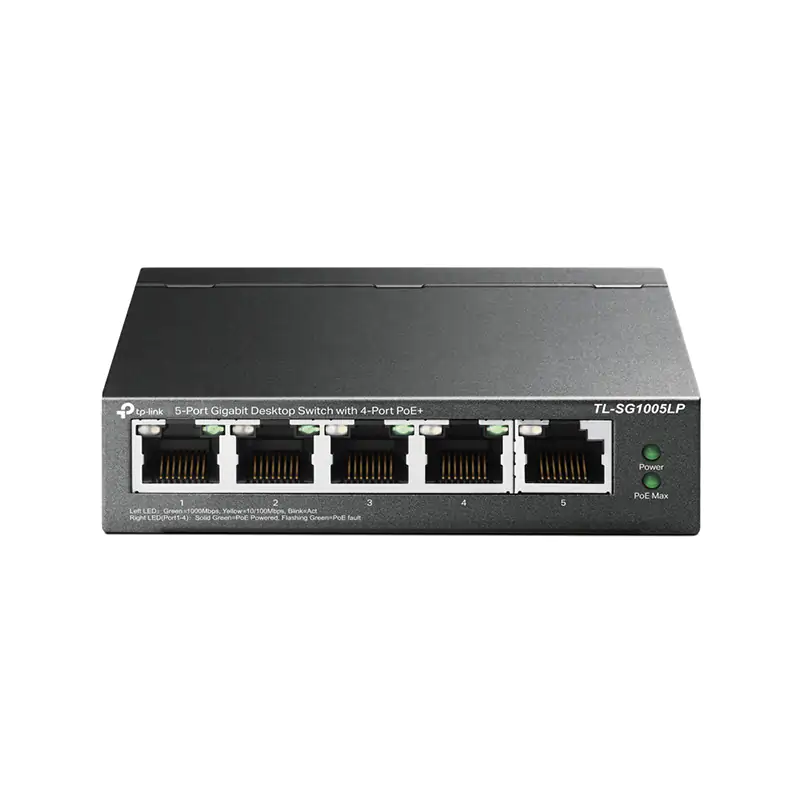

TL-SG1005LP
Power Adapter
Installation Guide
Environment
Operating Temperature: 0–40 ℃ (32–104 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Notes
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
