2U rackmount design 9 x 3.5 " drive bays (or 3x2.5"SSD), optional 1 x 5.25" drive bay Supports CEB (12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") MBs 3 x 80mm ball bearing fan-wall for better ventilation 2 x Front accessible USB ports Smooth edges to prevent lacerating your hands

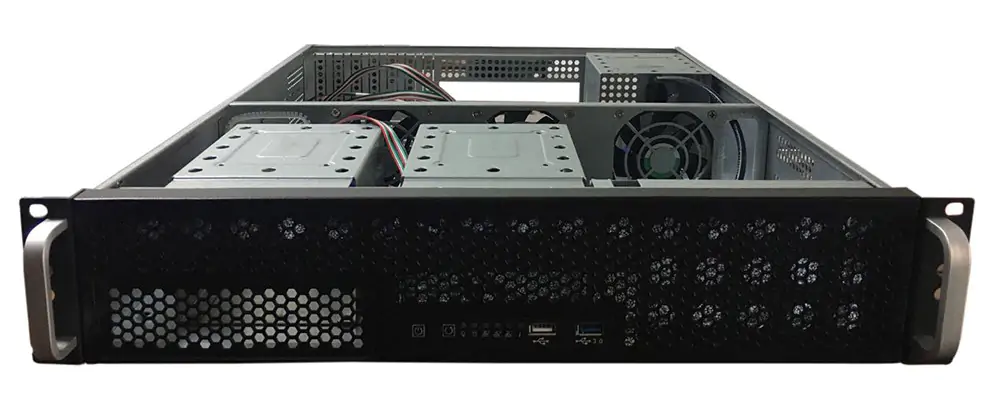

Overview TGC Rackmount Server Chassis, No PSU - 2U 9x Fixed HDD Bays Supports mATX, ATX, CEB Motherboards
Features 2U rackmount design 9 x 3.5 " drive bays (or 3x2.5"SSD), optional 1 x 5.25" drive bay Supports CEB (12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") MBs 3 x 80mm ball bearing fan-wall for better ventilation 2 x Front accessible USB ports Smooth edges to prevent lacerating your hands
Specifications Drive Bay: Supports 9x 3.5" drives and 1x 5.25"drive(5.25" is optional) Cooling Fan: 3 x 80mm middle fans Switch: Power ON/OFF x 1, System reset x 1 Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2 Connector: 2x front accessible USB port (USB3.0 +USB2.0) Motherboard Compatibility: Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") Power Supply Options: Standard ATX, standard 2U or Redundant 1+1 power supply Dimensions (W x D x H): 19" x 21.6" x 3.5" (483mm x 550mm x 88mm) Packing: Single boxes Weight: 9.5 kg (NET),11.0kg (GROSS) Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating) Relative Humidity: 5% to 95%,non-condensing Vibration (5-500 Hz):1 Grms (Operating), 2 G (Non-Operating) Shock: 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
|
