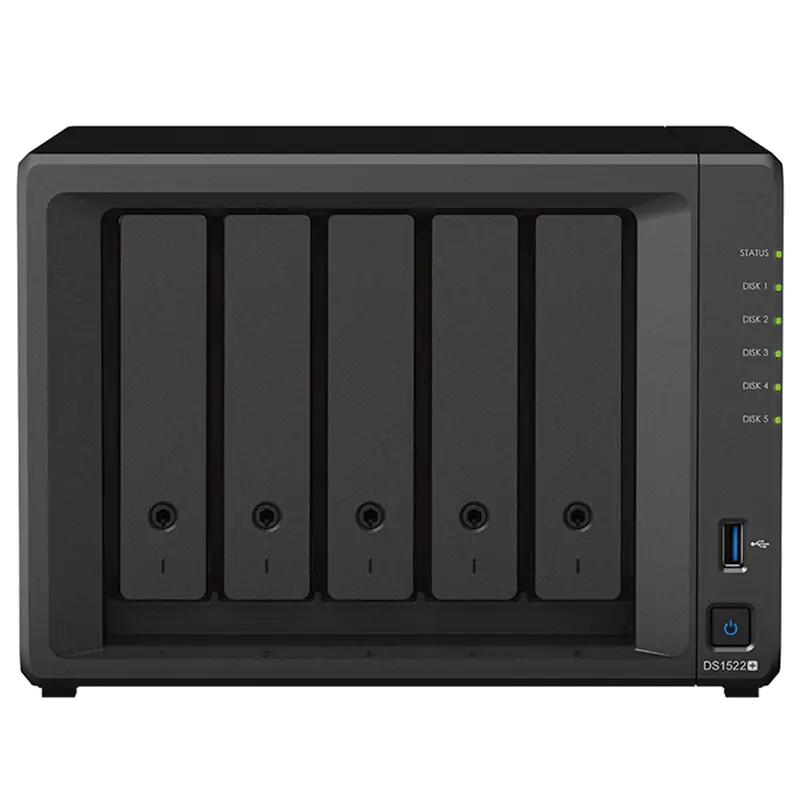

Synology 5 Bay Ryzen 8GB NAS (DS1522+)

CPU Model

AMD Ryzen R1600

CPU Quantity

1

CPU Architecture

64-bit

CPU Frequency

2-core 2.6 (base) / 3.1 (turbo) GHz

Hardware Encryption Engine (AES-NI)

Yes

MEMORY

System Memory

8 GB DDR4 ECC SODIMM

Memory Module Pre-installed

8 GB (8 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with   the same benchmark to ensure identical performance.

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

STORAGE

Drive Bays

5

Maximum Drive Bays with Expansion Unit

15 (DX517 x 2)

M.2 Drive Slots

2 (NVMe)

Compatible Drive Type*

3.5" SATA HDD

2.5" SATA SSD

M.2 2280 NVMe SSD

Hot Swappable Drive

Yes

EXTERNAL PORTS

RJ-45 1GbE LAN Port*

4 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port*

2

eSATA Port

2

PCIE

PCIe Expansion

1 x Gen3 x2 network upgrade slot

FILE SYSTEM

Internal Drives

Btrfs

EXT4

External Drives

Btrfs

EXT4

EXT3

FAT

NTFS

HFS+

exFAT

APPEARANCE

Size   (Height x Width x Depth)

166 mm x 230 mm x 223 mm

Weight

2.7 kg

OTHERS

System Fan

92 mm x 92 mm x 2 pcs

Fan Speed Mode

Full-Speed Mode

Cool Mode

Quiet Mode

Brightness Adjustable Front LED Indicators

Yes

Power Recovery

Yes

Noise Level*

22.90 dB(A)

Scheduled Power On / Off

Yes

Wake on LAN / WAN

Yes

Power Supply Unit / Adapter

120 W

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

52.06 W (Access)

16.71 W (HDD Hibernation)

British Thermal Unit

177.64 BTU/hr (Access)

57.02 BTU/hr (HDD Hibernation)

TEMPERATURE

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

CERTIFICATION

Certification

FCC

CE

BSMI

VCCI

RCM

UKCA

EAC

CCC

KC

PACKAGING CONTENT

Content

Main Unit X 1

Accessory Pack X 1

AC Power Adapter X 1

AC Power Cord X 1

RJ-45 LAN Cable X 2

Quick Installation Guide X 1
