SPECIFICATIONS:
CONNECTOR(S)
Connector Type(s)
7 - USB Type-A (9 pin, 5 Gbps)
1 - USB Type-B (9 pin) USB 3.0
1 - Terminal Block (2 Wire)
ENVIRONMENTAL
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
5%~95% RH (Non-condensing)
HARDWARE
USB-C Device Port(s)
No
USB-C Host Connection
Fast-Charge Port(s)
Yes
Ports
7
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
Industry Standards
USB Battery Charging Specification Rev. 1.2
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Chipset ID
Genesys Logic - GL3520
INDICATORS
LED Indicators
1 - Power (Green)
PACKAGING INFORMATION
Package Height
69 mm [2.7 in]
Package Length
19 cm [7.5 in]
Shipping (Package) Weight
629 g [22.2 oz]
Package Width
29.5 cm [11.6 in]
PERFORMANCE
Maximum Data Transfer Rate
5 Gbps
Type and Rate
USB 3.0 - 5 Gbit/s
ESD Protection
+/-15kV (Air)
+/-8kV (Contact)
Surge Protection
350W on the DFP and UFP
MTBF
126,106 Hours
PHYSICAL CHARACTERISTICS
Form Factor
Industrial
Weight of Product
325 g [11.5 oz]
Colour
Black
Material
Steel
Product Length
14.5 cm [5.7 in]
Product Width
54 mm [2.1 in]
Product Height
4.5 cm [1.8 in]
POWER
Power Source
Terminal Block
Input Voltage
7 ~ 48 DC
SOFTWARE
OS Compatibility
OS Independent; No additional drivers or software required
SPECIAL NOTES / REQUIREMENTS
System and Cable Requirements
Host computer with an available USB 3.0 port
Note
If connected to a USB 2.0 host port, performance may be limited
This product is intended for use with terminal block power only – Standard AC adapter not available
WHAT'S IN THE BOX
Included in Package

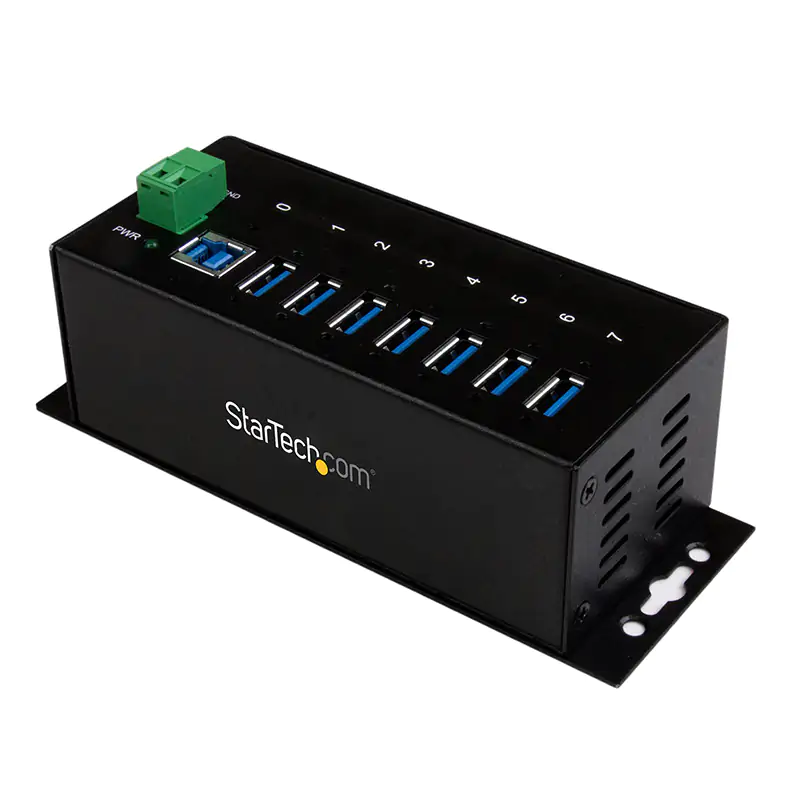

1 - 7 Port Industrial USB 3.0 Hub
1 - USB 3.0 A - B Cable
1 - DIN Rail Mounting Kit
1 - Instruction Manual
