Highest performance capability in super slim form factor
Optional models includes removable carrying handle (ML08B-H, ML08B-HW)
Support graphics card up to 13 inches
Mini-ITX motherboard & SFX PSU compatible
Independent expansion slot design for easy assembly
Tool-less drive cage design
Fits in nearly any environment with horizontal or vertical orientation

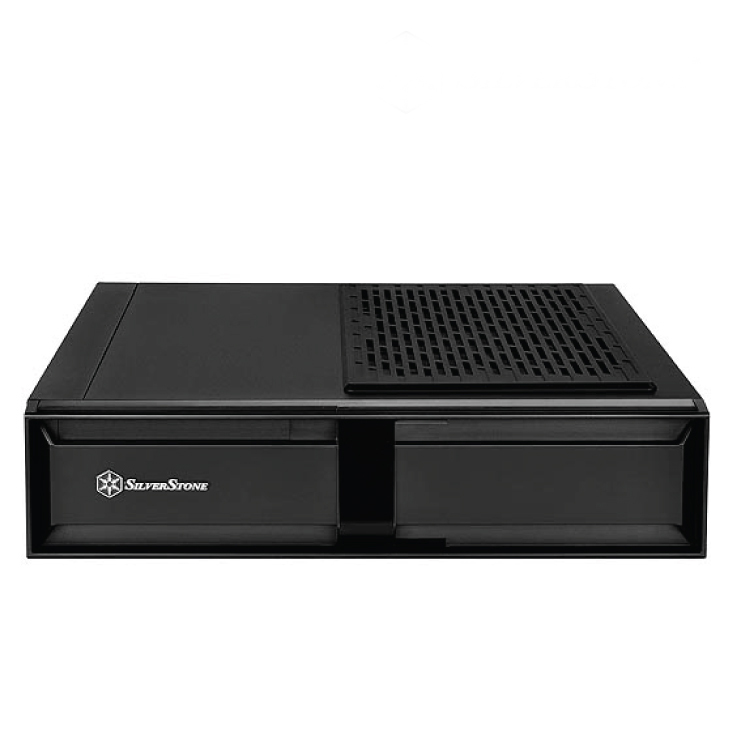

Based on the excellent RAVEN Z RVZ02 chassis, the Milo ML08 is a super slim Mini-ITX console case with highly capable accommodations. With a volume of only 12 liters, this case is small yet easy to assemble when compared to other slim cases in the same class. There is plenty of room for a powerful graphics card up to 13 inches in length while tool-less drive cages make assembly quicker than ever. With clever space utilization and engineering, two major heat sources are separated via the chassisβ’ main chamber so CPU and graphics card can each have their own airflow path. Despite its diminutive size, the ML08 is a remarkably versatile case that can be used anywhere from being a compact desktop workstation (in vertical orientation) to a living console or HTPC (in horizontal orientation). There are even optional models of ML08 with integrated handle, making them effortlessly portable and perfect for any slim PC build.
External Slim optical 12.7mm or 9.5mm x 1 (9.5mm compatibility limited to tray type) Internal 2.5Β x 2 (one additional 3.5Β or 2.5Β space depending on expansion card installed)
Cooling System
Rear Passive exhaust vents Side Oversized vents over CPU/motherboard and expansion area
*Compatible with 13Β long, width restriction 4.78Β
Limitation of CPU cooler
58mm
Net Weight
3.2kg~3.5kg
Dimension
380mm (W) x 87mm (H) x 370mm (D), 12 liters
Extra
Support two Kensington locks
Remark
*Expansion card holder needs to be removed when installing expansion/graphics card wider than 4.78 inches. When system is assembled without the holder, vertical orientation of the case is recommended and transporting/shipping should be avoided. For more details, please refer to manual.
* Specifications are subject to change without notice. * Specifications may vary. * The product picture(s) is only for your reference, it may differ from the actual product.
