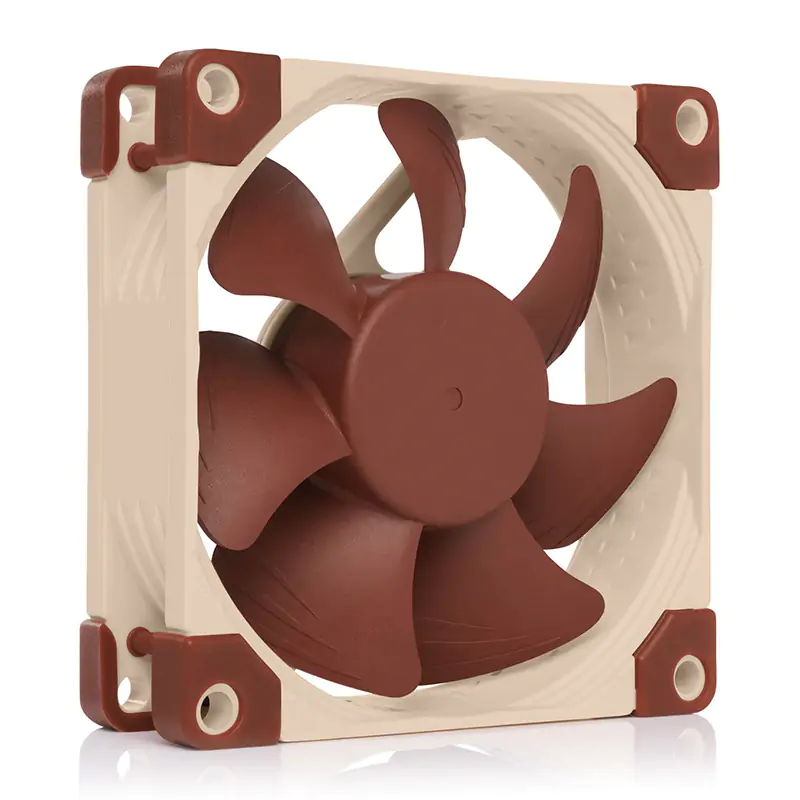

SPECIFICATIONS:
Size
80x80x25 mm
Mounting hole spacing
71,5x71,5 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
2200 RPM
Rotational speed with L.N.A. (+/- 10%)
1750 RPM
Min. rotational speed @ 20% PWM (+/-20%)
450 RPM
Airflow
55,5 m/h
Airflow with L.N.A.
43,9 m/h
Acoustical noise
17,7 dB(A)
Acoustical noise with L.N.A.
13,8 dB(A)
Static pressure
2,37 mm Hâ‚‚O
Static pressure with L.N.A.
1,54 mm Hâ‚‚O
Input power (typical)
0,75 W
Input power (max.)
0,96 W
Input current (typical)
0,06 A
Max. input current
0,08 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
