PERFORMANCE |
Processor | IntelĀ® Coreā¢ i7-13700, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB |
Graphics | Integrated IntelĀ® UHD Graphics 770 |
Chipset | IntelĀ® B660 Chipset |
Memory | 2x 8GB UDIMM DDR4-3200 |
Memory Slots | Two DDR4 UDIMM slots, dual-channel capable |
Max Memory | Up to 64GB DDR4-3200 |
Storage | 512GB SSD M.2 2280 PCIeĀ® 4.0x4 NVMeĀ® Opal 2.0 |
Storage Support | Up to two drives, 1x 3.5" HDD + 1x M.2 SSD ā¢ 3.5" HDD up to 2TB ā¢ M.2 SSD up to 1TB |
Card Reader | None |
Optical | None |
Audio Chip | High Definition (HD) Audio, RealtekĀ® ALC623-CG codec |
Speakers | 1Wx1 |
Power Supply | 260W 90% |
DESIGN |
Keyboard | USB Traditional Keyboard, Black, English |
Mouse | USB Calliope Mouse, Black |
Expansion Slots | One PCIeĀ® 4.0 x16, low-profie (length < 167.65mm, height < 68.90mm) One PCIeĀ® 3.0 x1, low-profie (length < 167.65mm, height < 68.90mm) Two M.2 slots (one for WLAN, one for SSD) |
Case Color | Black |
Stand | None |
Pen | Pen Not Supported |
Form Factor | SFF (7.4L) |
Dimensions (WxDxH) | 100 x 308 x 274.8 mm (3.9 x 12.1 x 10.8 inches) |
Weight | Around 4.5 kg (9.9 lbs) |
CONNECTIVITY |
Ethernet | Integrated 100/1000M |
WLAN + Bluetooth | None |
WWAN | Non-WWAN |

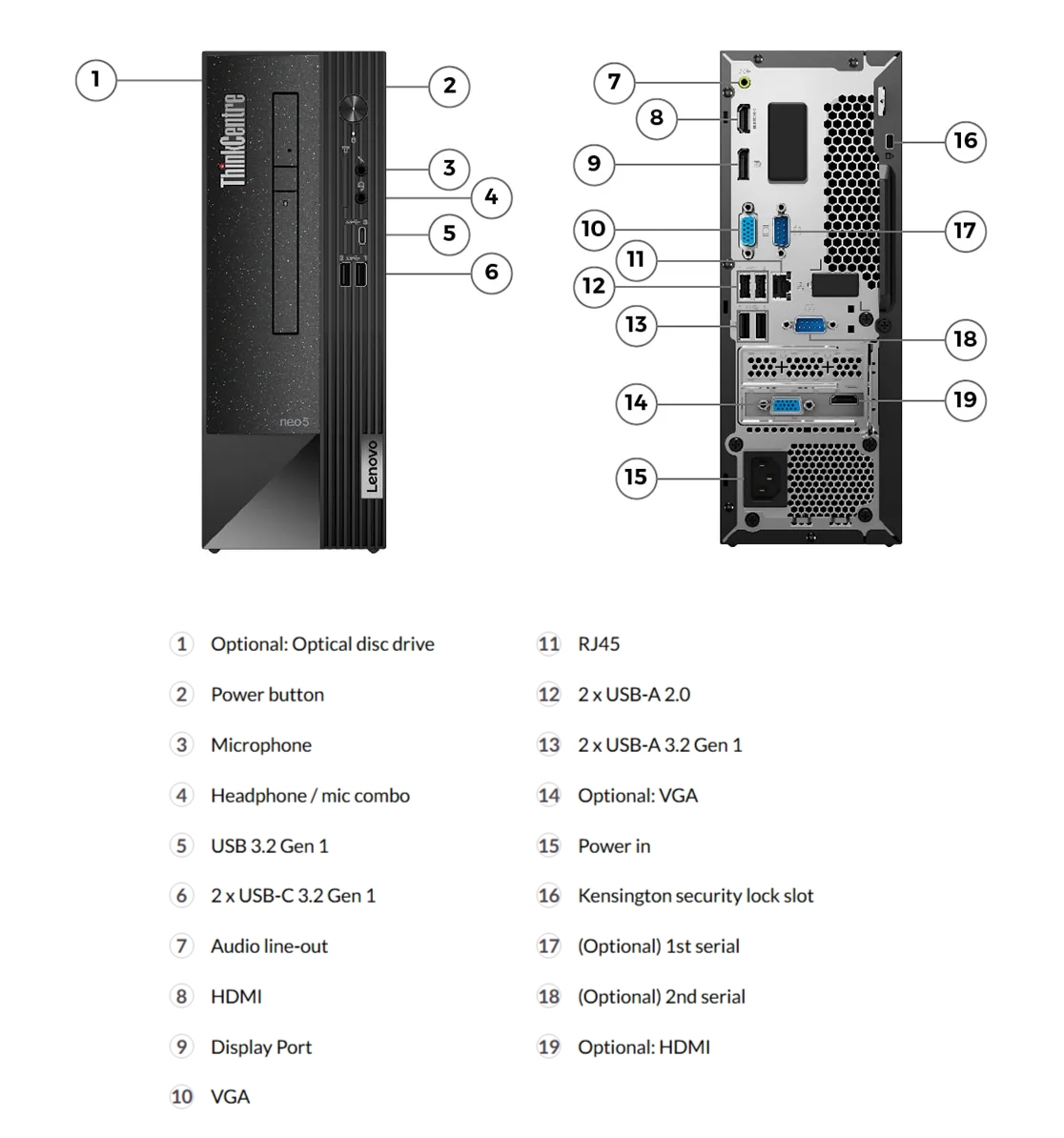

Front Ports | 1x USB-CĀ® 3.2 Gen 1 (support data transfer and 5V@3A charging) 2x USB 3.2 Gen 1 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |
Rear Ports | 2x USB 2.0 2x USB 3.2 Gen 1 (one supports Smart Power On) 1x HDMIĀ® 2.1 TMDS 1x DisplayPortā¢ 1.4 1x VGA 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
Optional Rear Ports (configured) | None |
Monitor Cable | None |
SECURITY & PRIVACY |
Security Chip | Discrete TPM 2.0, TCG certified |
Fingerprint Reader | No fingerprint reader |
Physical Locks | KensingtonĀ® Security Slotā¢, 3 x 7 mm Padlock Loop |
Smart Cable Clip | None |
Chassis Intrusion Switch | None |
MANAGEABILITY |
System Management | Non-vProĀ® |
CERTIFICATIONS |
Green Certifications | ENERGY STARĀ® 8.0 EPEATā¢ Silver Registered ErP Lot 3 RoHS compliant TCO Certified |
SOFTWARE |
Operating System | WindowsĀ® 11 Pro, English |
