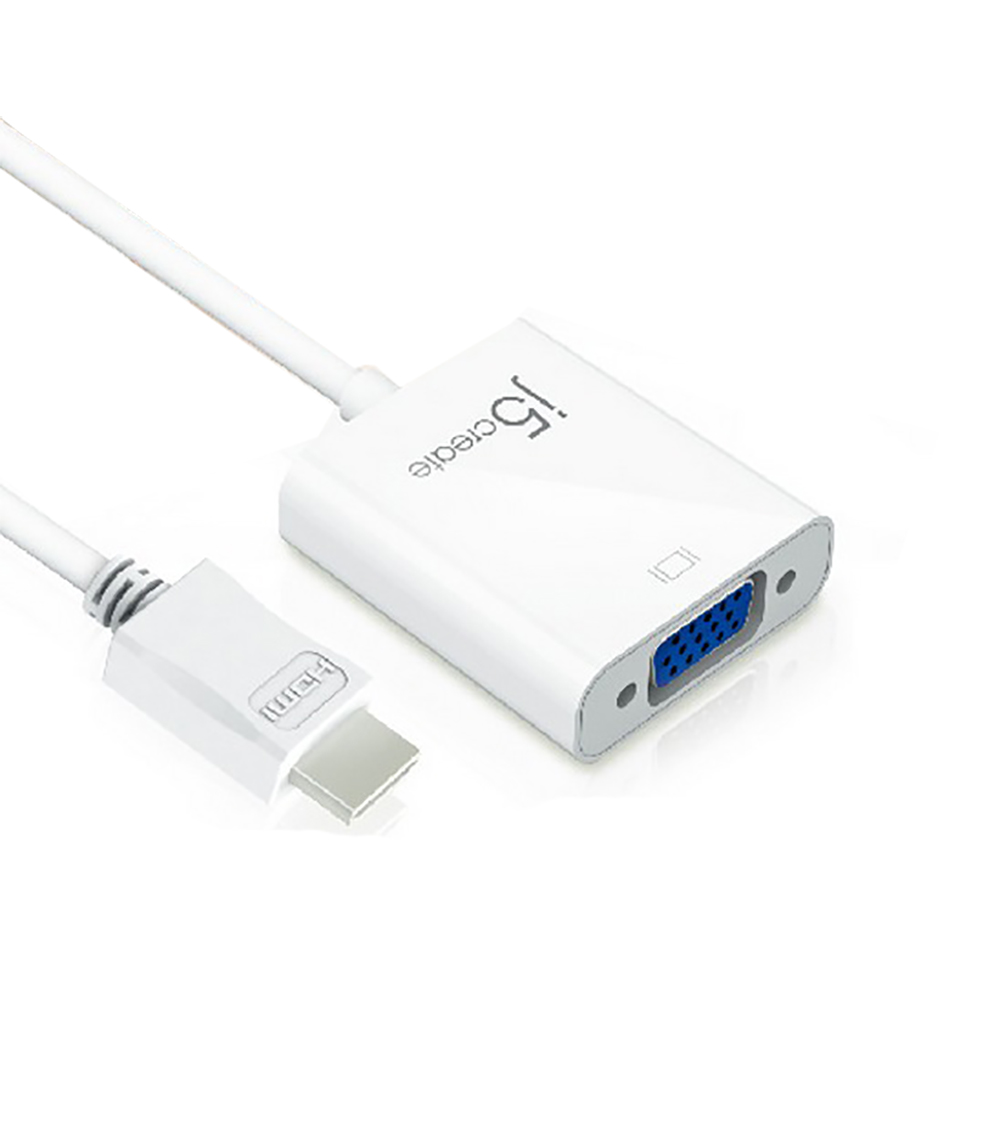

The j5create™s HDMI to VGA adapter JDA213 allows you to connect the HDMI output from your laptop, Ultra book, Desktop, Tablet, Blue ray DVD, Digital set-top box, player, Digital camera , Video camera or gamming console equipment to the VGA input of a monitor or projector by converting the HDMI video signal from the output device into a VGA output and separate 2-channel analog audio. The adapter Supports resolutions including high definition 1080p, up to 1920x1200, which eliminates the expense of upgrading a VGA display for the sake of compatibility. The Adapter can also increase your productivity by extending your computer's desktop onto a secondary monitor, doubling available workspace. This adapter has a high quality, compact design for long term durability and a minimal footprint.
Features
* Easy to use cable * No software required * No power adapter required * Easily make your new HDMI equipment compatible with a VGA display * Supports PC resolutions up to 1920x1200 @60Hz (WUXGA) and HDTV resolutions up to 1080p @60Hz * 2-channel analog audio output * Reserved Micro USB B Type power input port, if the lack of HDMI output device can be powered separately * HDMI Receiver compliant with HDMI 1.4 specification * VGA output is compliant with VESA VSIS v1r2 specification
Interface
VGA Output VGA (15 pin; High Density D-Sub) Female Audio Output 3.5 mm Mini-Jack (3 Position) Female HDMI Input HDMI (19 pin) Male Power USB Micro-B (5 pin) Female 5V
Physical Specifications
Housing Material Plastic Dimensions Main body: 1.6 (W) x 1.8(H) x 0.6(D) inch 40 (W) x 45(H) x 14(D) mm Cable length: 4 /100 inch / mm Weight Approximately 54 g
Hardware
Converter Type Format Converter Audio Yes
Performance
Maximum Analog Resolutions 1920x1200 Wide Screen Supported Yes Audio Specifications 2-Channel Stereo
Environments
Device: HDMI devices including, but not limited to: * Desktop, Laptop, Ultrabook(PCs and Macs) * DVD players and Blu-ray players * Smart TV Box * Digital camera * Gamming consoles (PS3 and Xbox) VGA display devices including, but not limited to: * Projector * Display monitor * TV Audio devices including, but not limited to: (Option) * Amplifier speaker * Home Theater
Package Contents
* j5create HDMI to VGA adapter JDA213
* Specifications are subject to change without notice. * Specifications may vary. * The product picture(s) is only for your reference, it may differ from the actual product.
