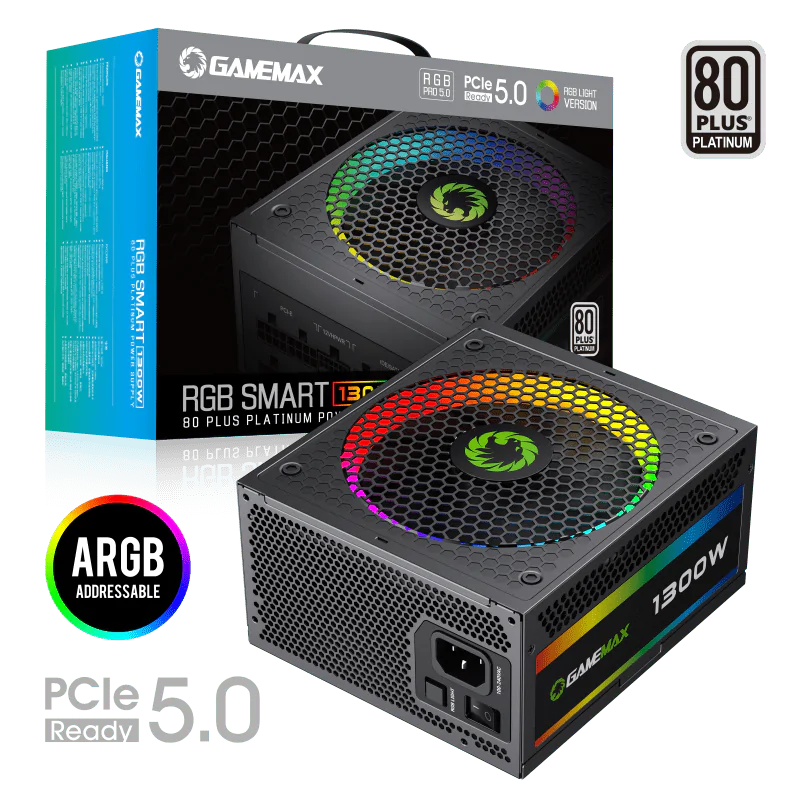

RGB-1300 (ATX3.0 PCIe5.0)GameMax RGB-1300 ATX3.0 PCIE5.0 Ready, Fully Modular 80+ Platinum Certified, LLC+DC-DC design for Powerful single +12V rail helps ensure a stable and reliable supply to other PC components. with 140mm ARGB fan helps deliver brighter and stunning light effect and supports synchronization with compatible RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities.
⚡ATX3.0 PCI-E 5.0 Ready: It comes with 1x16pin 12VHPWR connector, for support latest GPU Cards
⚡80 Plus Platinum Certified: RGB-1300 with 92% efficiency or higher under typical loads. Lower power consumption, less noise, and cooler temperatures.
⚡RGB Light Mode: 25 smart RGB lighting modes with memory function, press the RGB controller switch to choose the color mode you like single color mode, breathing lights mode, and color mix mode.
⚡Full Modular: Free-Cable Design, Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality.
⚡Ultra-quiet fan: The 140mm ultra-quiet fan keeps your power supply quiet while maintaining good heat dissipation.
⚡Output and Protection: Powerful single +12V rails offer stable DC output and support high-end graphic cards and PC systems. Excellent capacitors offer stability, durability, and reliability, OPP/OVP/UVP/SCP/OCP electrical protection included.
Product Technical Specifications | 80PLUS® | Cetificate | PLATINUM | | Form Factor | Power Supply | Intel ATX 3.0 PCIe5.0 | | Dimensions |
| 170 mm (L) x 150 mm (W) x 86 mm (H) | | Fan Information | Fan Size | 140mm with ARGB LEDs | | Fan Control | Temperature control | | Fan Bearing | Fluid Dynamic Bearing | | Life Expectancy | 50,000 hours | | Cable Information | Modularity | Fully Modular | | Cable type | Flat black cables | | Electrical Features | Operating Temperature | 0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) | | MTBF | 100,000 Hours (@ 25 °C, Excl. fan) | | AC Input | Full Range | | Protection | OPP, OVP, UVP, OCP, OTP, SCP | | Safety Ceritificate | Safety and EMC | cTUVus, TUV, CB, CCC, EAC, CE | | Environmental | Compliance | RoHS |
RGB Modes Operation Instructions: | Key Function | RGB LED Status | | Turn On, Entry last Mode | Keep the Save memory mode | | Press RGB Switch | Select RGB light mode | | Press and Hold in 3sec | OFF the RGB LED light | | Press the Switch again | White light flashes once and Entry in o the last mode | | Press Longer Don't release | Entry Self-Test mode(All led White Light） | | Release after Press longer | Exit Self-Test mode, Entry Last memory mode | Aura SYNC Mode:
| Access external ARGB HUB or 5V 3pin signal from motherboard |
|
