SPECIFICATIONS:
GENERAL DATA
Model

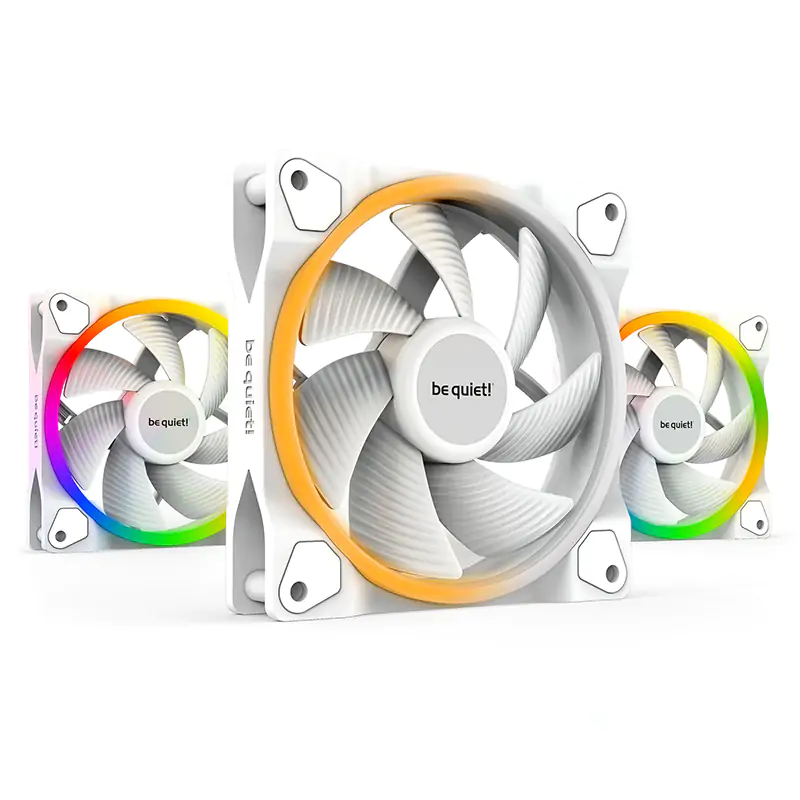

Light Wings White 120mm PWM
Dimensions (mm)
120 x 120 x 25
Color option
Black | White
Lighting
ARGB LED
Fan speed at 100% PWM / 12V (rpm)
1700
Noise level at 100% PWM / 12V (dB(A))
20.6
Airflow at 100% PWM / 12V (CFM / m3/h)
41.51 / 70.53
Air Pressure at 100% PWM / 12V (mm H2O)
1.66
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H), (mm)
Weight incl. fixed cables (g)
200
Bearing technology
Rifle
Motor technology
4-pole fan motor
Screw fixing
✓
CABLES / CONNECTORS
Daisy-chain compatible
Lighting connector
5V 3-pin ARGB
Connector
4-pin PWM
Cable length (mm)
500
PERFORMANCE / NOISE
Lifespan (h / 25°C)
60.000
ELECTRICAL SPECIFICATIONS
Rated Voltage DC (V)
12
Operating Voltage DC (V)
5 - 13.2
Current consumption (A)
0.07
Input current (A)
Safety current (A)
0.38
Input power (W)
4.56
Rated Current LED (A)
0.60
ACCESSORIES
Screws
16
Others
ARGB Hub, ARGB Hub cable, double coated tissue tape, fastening screws for ARGB hub
SAFETY CERTIFICATION
Approvals
CE / UL
