Aten 4 Port USB 3.0 4K Dual DisplayPort KVMP Switch (CS1944DP)
Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates

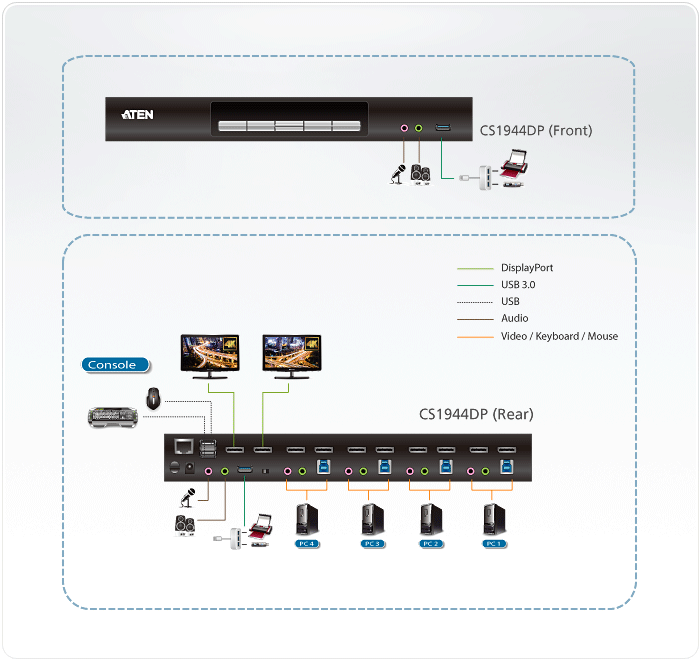

Quad-Display – Easily connect two CS1944DP units for a second dual-screen setup controlled through a single connection
Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector
DisplayPort Dual – Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
Specifications
Computer Connections
4
Port Selection
Hotkey, Pushbutton, Mouse, RS-232 Commands
Video
4096 x 2160 @ 60Hz
Connectors
Console Ports
2 x USB Type A Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports
4 x USB3.1 Gen1 Type B Female (Blue) 8 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports
1 x RJ-45 Female
Power
1 x DC Jack
USB Hub
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected
5 x Pushbutton
Station Selection
1 x Slide Switch
Emulation
Keyboard / Mouse
USB
Scan Interval
1-99 seconds (default: 5 seconds)
Power Consumption
DC12V:5.76W:84BTU
Environmental
Operating Temperature
0–50°C
Storage Temperature
-20–60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
1.51 kg ( 3.33 lb )
Dimensions (L x W x H)
33.50 x 15.66 x 4.40 cm (13.19 x 6.17 x 1.73 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x 4-Port USB 3.0 4K DisplayPort Dual Display KVMPâ„¢ Switch
