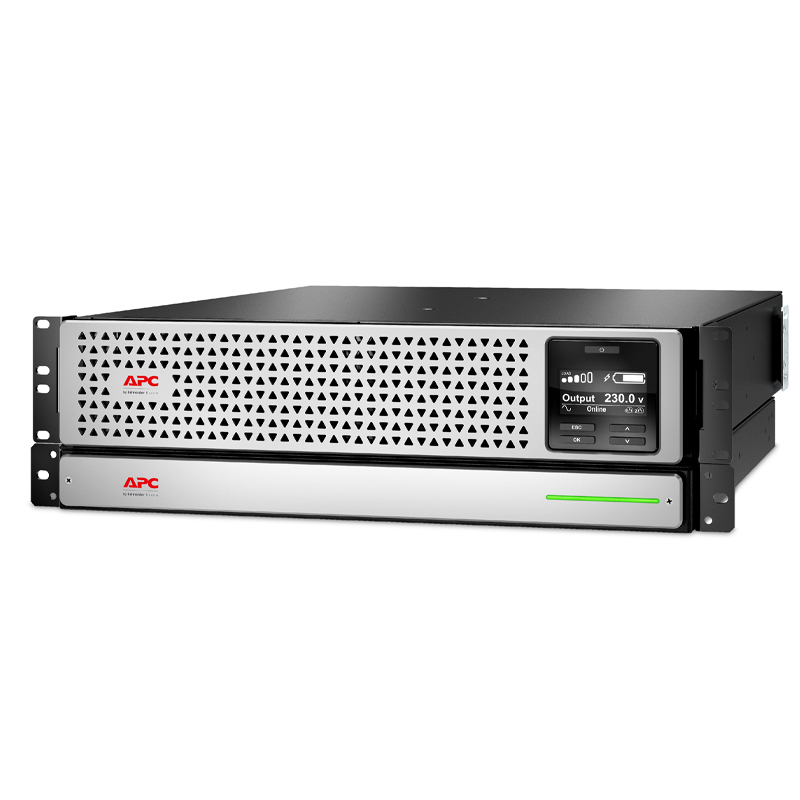

APC SRTL1500RMXLI-NC Smart-UPS 1500VA 2U Rack Mount 230V Network Card UPS High density, double-conversion on-line power protection with scalable runtime Includes: CD with software, Comms cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
Specifications OutputOutput power capacity 1.35 KWatts / 1.5 kVA Max Configurable Power (Watts) 1.35 KWatts / 1.5 kVA Nominal Output Voltage 230V Output Voltage Distortion Less than 2% Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Other Output Voltages 220, 240 Load Crest Factor 3 : 1 Topology Double Conversion Online Waveform type Sine wave Output Connections (8) IEC 320 C13 (Battery Backup) Bypass Built-in Bypass InputNominal Input Voltage 230V Input frequency 40 - 70 Hz (auto sensing) Input Connections IEC-320 C14 Input voltage range for main operations 50-150 (40% Load), 80 - 150V Other Input Voltages 220, 240 Batteries & RuntimeBattery type Li-ion Typical recharge time 6hour(s) Nominal Battery Voltage 48V Expected Battery Life (years) 5 - 10 Extendable Run Time 1 Extended Run Options Communications & ManagementInterface Port(s) RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB Pre-Installed SmartSlot™ Cards Control panel Multi-function LCD status and control console Audible Alarm Audible and visible alarms prioritized by severity Emergency Power Off (EPO) Yes Surge Protection and FilteringSurge energy rating 340Joules PhysicalMaximum Height 128mm, 12.8CM Maximum Width 432mm, 43.2CM Maximum Depth 590mm, 59.0CM Rack Height 3U Net Weight 30.53KG Shipping weight 46.86KG Shipping Height 445mm, 44.5CM Shipping Width 600mm, 60.0CM Shipping Depth 850mm, 85.0CM Color Black Units per Pallet 6.0 EnvironmentalOperating Temperature 0 - 40 °C Operating Relative Humidity 0 - 95 (non-condensing) % Operating Elevation 0-3000meters Storage Temperature -15 - 45 °C Storage Relative Humidity 0 - 95 (non-condensing) % Storage Elevation 0-15000meters Audible noise at 1 meter from surface of unit 50.0dBA Online thermal dissipation 450.0BTU/hr Protection Class IP 20 ConformanceApprovals CE, CE Mark, EAC, RCM, VDE Standard warranty 5 year repair or replace Sustainable Offer StatusRoHS Compliant REACH REACH: Contains No SVHCs Battery Directive Compliant |
