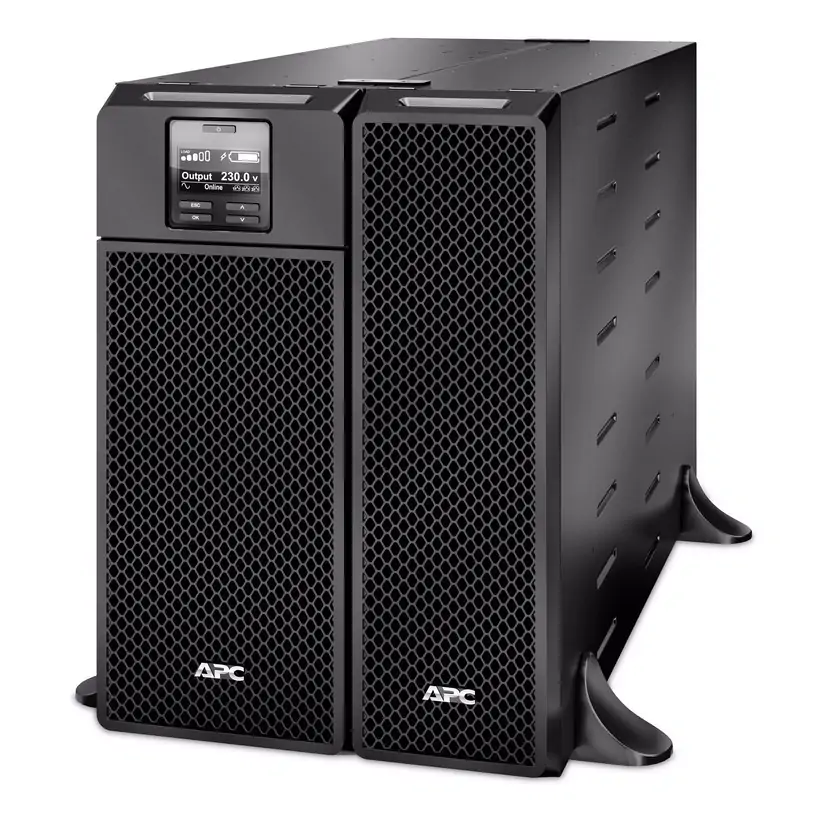

APC Smart-UPS SRT 6000VA 230V High density, double-conversion on-line power protection with scalable runtime Includes : CD with software , Documentation CD , Installation guide , Removable support feet , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card 10/100 BaseT ConnectionConnect the device to a network using a 10 or 100 BaseT connectionBattery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenanceGreen modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms. |
| Offical Product Link | Open Link | | Output | Output power capacity 6.0 KWatts / 6.0 kVAMax Configurable Power (Watts) 6.0 KWatts / 6.0 kVANominal Output Voltage 230VOutput Voltage Distortion Less than 2%Output Frequency (sync to mains) 50/60Hz +/- 3 HzOther Output Voltages 220, 240Load Crest Factor 3 : 1Topology Double Conversion OnlineWaveform type Sine waveOutput Connections (4) IEC 320 C19 (Battery Backup) (6) IEC 320 C13 (Battery Backup) (1) Hard Wire 3-wire (H N + G) (Battery Backup) (2) IEC Jumpers (Battery Backup) Bypass Internal Bypass (Automatic and Manual)
| | Input | | | Batteries & Runtime | | | Communications & Management | | | Surge Protection and Filtering | Surge energy rating 480Joules | | Physical | Maximum Height 432mm , 43.2cmMaximum Width 174mm , 17.4cmMaximum Depth 719mm , 71.94cmNet Weight 60.0kgShipping weight 67.0kgShipping Height 370mm , 37.0cmShipping Width 610mm , 61.0cmShipping Depth 960mm , 96.0cmColor BlackUnits per Pallet 6.0
| | Environmental | Operating Environment 0 - 40 °COperating Relative Humidity 0 - 95% non-condensing %Operating Elevation 0-3000metersStorage Temperature -15 - 45 °CStorage Relative Humidity 0 - 95% non-condensing %Storage Elevation 0-15000metersAudible noise at 1 meter from surface of unit 55.0dBAOnline thermal dissipation 1300.0BTU/hrProtection Class IP 20
| | Conformance | Approvals CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), IRAM, RCM, VDEStandard warranty 3 years repair or replace (excluding battery) and 2 years for battery
| | Sustainable Offer Status | RoHS CompliantREACH REACH: Contains No SVHCs
|
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
|
