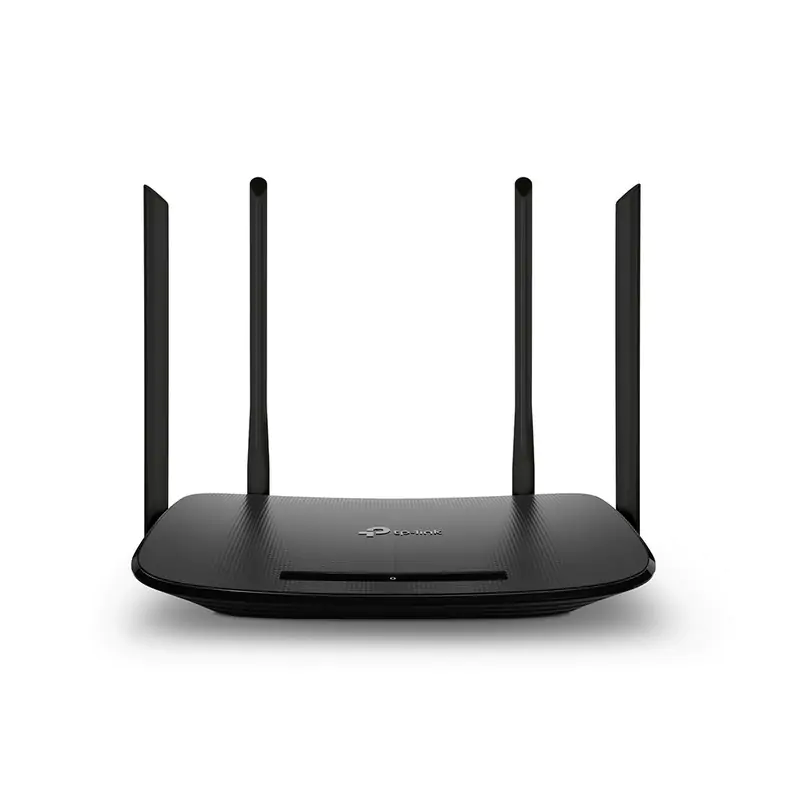

TP-Link Wireless Dual Band VDSL/ADSL Modem Router (ARCHER VR300)

Interface

3 10/100 RJ45 LAN Ports

1 10/100 RJ45 LAN/WAN Port

1 RJ11 Port

Button

WPS Button

Power On/Off Button

Reset Button

Power Supply

12V/1A

VDSL2 Standards

ITU G.993.2, Up to 17a prole (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP)

ADSL Standards

Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

ITU-T G.994.1 (G.hs),

ITU-T G.995.1

ADSL2 Standards

ITU-T G.992.3 (G.DMT.bis),

ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards

ITU-T G.992.5

Dimensions ( W x D x H )

385*290*76mm

Antenna Type

4 fixed external antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac 5GHz,

IEEE 802.11b/g/n 2.4GHz

Wireless Speeds

867Mbps at 5GHz

300Mbps at 2.4GHz

Transmit Power

2.4GHz <20dBm(EIRP)

5GHz <23dBm(EIRP)

Wireless Functions

Access Point / Wireless Bridge, Wireless EnableDisable, SSID Broadcast EnableDisable

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA-PSK2

encryptions, QSS(WPS)

SOFTWARE FEATURES

Quality of Service

ATM QoS, Bandwidth Control

Security

NAT Firewall, Access Control, IP and MAC Address Binding

Operating Modes

VDSL/ADSL Modem Router, Wireless Router

Management

Web Based Conguration(HTTP), Remote management,

command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware

Upgrade, Diagnostic Tools

DHCP

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding

Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec Passthrough

Protocols

Supports IPv4 and IPv6

ATM/PPP Protocols

ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),

PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483

Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Advanced Functions

Parental Control, Network Address Translation(NAT),

Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,

DDNS, IGMP V1/V2/V3

Guest Network

2.4GHz guest network, 5GHz guest network

OTHERS

Certification

CE, RoHS, RCM

Package Contents

· AC1200 Wireless VDSL/ADSL Modem Router Archer VR300

· External Splitter

· RJ11 DSL Cable

· RJ45 Ethernet Cable

· Power Adapter

· Quick Installation Guide

System Requirements

· Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled   browser

· Subscription with an Internet Service Provider (for Internet   access)

Environment

· Operating Temperature: 0℃~40℃ (32℉ ~104℉)

· Storage Temperature: -40℃~70℃   (-40℉   ~158℉)

· Operating Humidity: 10%~90% non-condensing

· Storage Humidity: 5%~90% non-condensing
