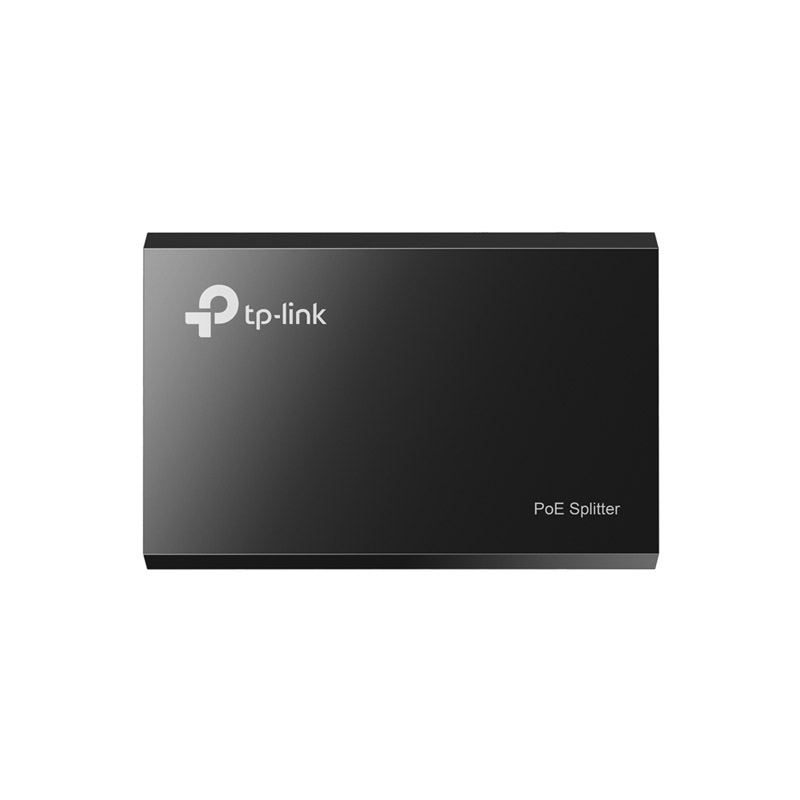

TP-LINK PoE Splitter (TL-POE10R)

TP-LINK PoE Splitter (TL-POE10R)
  • 28477_thumb_P_1563175509127
  • 28477_thumb_P_1563175525672
  • 28477_thumb_P_1563175525770
  • 28477_thumb_P_1563175526087
  • 28477_thumb_P_1563175526359
$17.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 21hrs and 28mins

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    TP-LINK PoE Splitter (TL-POE10R)
  • Model Number:
    TL-POE10R
  • Brand:
  • Manufacturer Warranty:
    3 Year

Description

TP-LINK TL-POE10R



The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.



  • IEEE 802.3af compliant

  • Selectable power output

  • Gigabit speed support

  • Plug-and-Play, requires no configuration


TP-LINK PoE Splitter (TL-POE10R)


Specifications


HARDWARE FEATURES

INTERFACE

2 10/100/1000Mbps RJ45 Port
  AUTO Negotiation/AUTO MDI/MDIX
  1 POWER OUTPUT PORT (5.5 mm round barrel)

NETWORK MEDIA

10BASE-T: UTP category 3, 4, 5 cable (Max   100m)
  EIA/TIA-568 100Ω STP (Max 100m)
  100BASE-TX: UTP category 5, 5e cable (Max 100m)
  EIA/TIA-568 100Ω STP (Max 100m)
  1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

POWER SUPPLY

12VDC 1A, 9VDC 1A, 5VDC 2A selectable

BASIC FUNCTION

Compatible With IEEE 802.3af Compliant PSEs
  Delivers Power Up To 100 Meters
  Optional 12VDC, 9VDC or 5VDC Power Output

LED INDICATOR

PWR

DIMENSIONS ( W X D X H )

3.2 × 2.1 × 0.9 in.
  (81 × 54 × 24 mm)

SOFTWARE FEATURES

BASIC FUNCTION

Compatible with IEEE 802.3af compliant power   sources (PSE)
  Delivers power up to 100 meters
  Selectable 12VDC, 9VDC or 5VDC power output

OTHERS

CERTIFICATION

FCC, RoHS

PACKAGE CONTENTS

PoE Splitter TL-POE10R
  Power Cord
  RJ45 Cable
  Installation Guide

ENVIRONMENT

Operating Temperature: 0℃~40℃   (32℉~104℉)
  Storage Temperature: -40
℃~70℃   (-40℉~158℉)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
