Specifications

  • Product Name:
    TP-LINK 8-port 10/100M PoE Switch (TL-SF1008P)
  • Model Number:
    TL-SF1008P
  • Brand:
  • Warranty Period:
    5 Year

Description

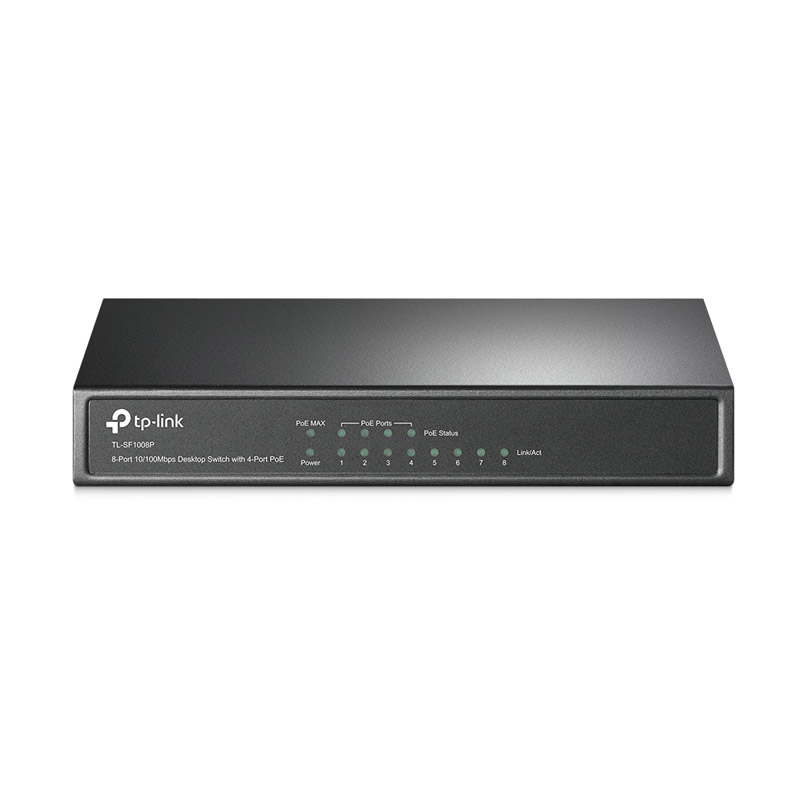

TP-LINK TL-SF1008P 8-port 10/100M PoE Switch



TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.


  • With four PoE ports, transfers data and power on one single cable

  • Working with IEEE 802.3af compliant PDs, expands home and office network

  • Requires no configuration and installation


TP-LINK 8-port 10/100M PoE Switch (TL-SF1008P)

Specifications


HARDWARE FEATURES

INTERFACE

8 10/100Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX

NETWORK MEDIA

10BASE-T: UTP category 3, 4, 5 cable (maximum   100m)
  EIA/TIA-568 100Ω STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)

FAN QUANTITY

Fanless

EXTERNAL POWER SUPPLY

External Power Adapter(Output: 48VDC / 1.25A)

POE PORTS (RJ45)

Standard: 802.3 af compliant
  PoE Ports: Port1- Port4
  Power Supply: 57W

BACKBOUND BANDWIDTH

1.6Gbps

MAC ADDRESS TABLE

2K

DIMENSIONS ( W X D X H )

6.7 × 3.9 × 1.1 in.
  (171 × 98 × 27 mm)

MAX POWER CONSUMPTION

2.7( no PD load)
  65.9(with 57W PD load)

MAX HEAT DISSIPATION

9.1BTU/h(no PD load)
  224.9BTU/h(with 57W PD load)

SOFTWARE FEATURES

TRANSMISSION METHOD

Store-And-Forward

ADVANCED FUNCTIONS

Compatible With IEEE 802.3af Compliant PDs
  Priority Function
  Mac Address Auto-Learning And Auto-Aging
  IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex   Mode

OTHERS

CERTIFICATION

FCC, RoHS

PACKAGE CONTENTS

TL-SF1008P, Power Adapter, User Guide

ENVIRONMENT

Operating Temperature: 0℃~40℃   (32℉~104℉)
  Storage Temperature: -40
℃~70℃   (-40℉~158℉)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
