Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
Button
Reset
Power supply
PoE or external 9VDC/0.6A power supply
Power consumption
2.8W
Dimensions
7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
Antenna type
Internal 2* 4dBi Omni
Mounting
Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4-2.4835GHz
Signal rate
11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless functions
Multiple SSIDs（Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless security
Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission power
CE: ≤19dBm FCC: ≤26dBm
MANAGEMENT
Omada cloud access
Yes
Omada app
Yes
Omada cloud controller
Yes
Omada controller software
Yes
Email alerts
Yes
Led on/off control
Yes
Management mac access control
Yes
SNMP
v1,v2c
System logging local/remote syslog
Local/Remote Syslog
Telnet
Yes
SSH
Yes
Web-based management
HTTP/HTTPS
Management VLAN
Yes
OTHERS
Certification
CE, FCC, RoHS
Package contents

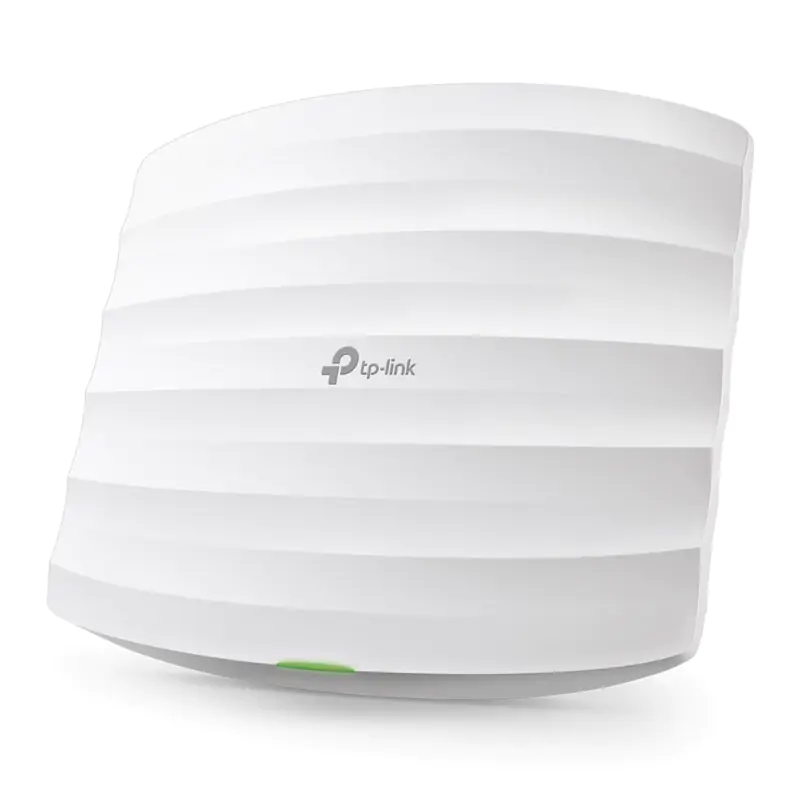

300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Adapter Mounting Kits, Installation Guide
