SPECIFICATIONS:
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p
Interface
16 × 10/100/1000Mbps Ports
Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter 100VAC ~ 240VAC
(Output: 12VDC / 1.0A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
11.3 × 4.4 × 1.0 in.
(286 × 112 × 25 mm)
Max Power Consumption
10W
Max Heat Dissipation
34.1 BTU/h
PERFORMANCE
Packet Forwarding Rate
23.8Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1Mb
JumboFrame
10KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store and Forward
OTHERS
Certification
FCC ,RoHS
Package Contents

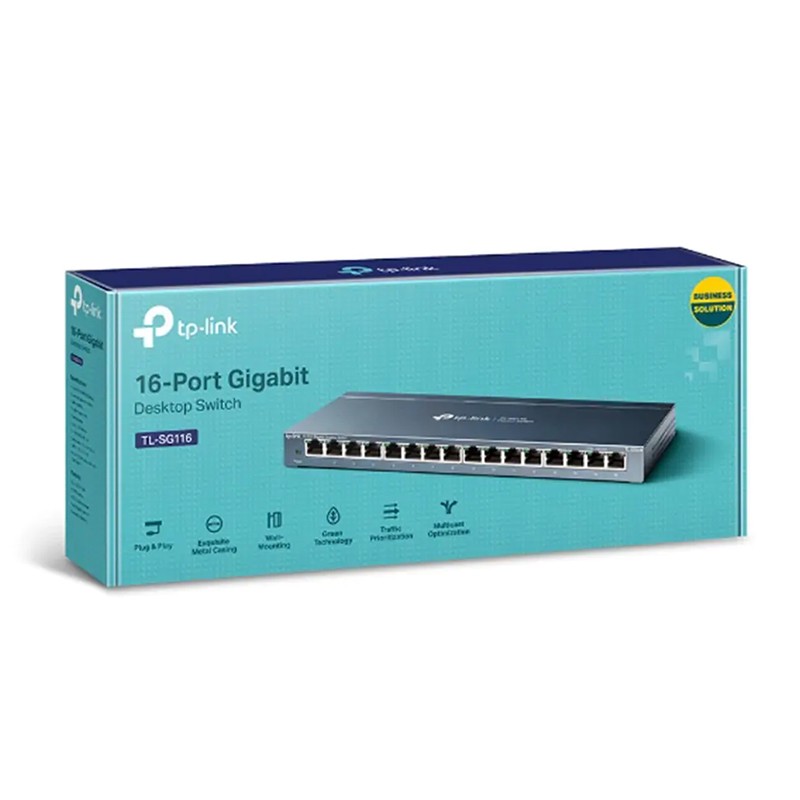

16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
