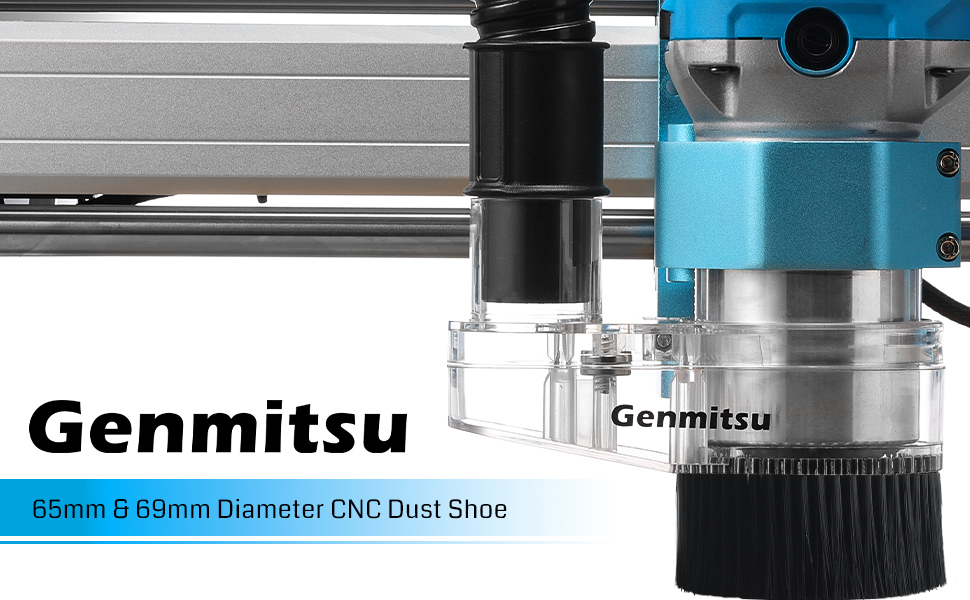

Genmitsu 65mm & 69mm CNC Dust Shoe, Compatible with Most 65mm/69mm Spindle Motor Compact Router, Hose Adapter Inner Diameter 38mm (1.5″), Transparent

$60.0

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

Next Day Dispatch - Order within 0hrs and 33mins

- +

Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Wish Add to Wishlist

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

Product Name:

Genmitsu 65mm & 69mm CNC Dust Shoe, Compatible with Most 65mm/69mm Spindle Motor Compact Router, Hose Adapter Inner Diameter 38mm (1.5″), Transparent
Model Number:

101-63-DS69-CL
Brand:

Genmitsu
Manufacturer Warranty:

1 Year

Description

Specifications:

Weight: 133g (0.29lb)

Vacuum Port Outer Diameter: 38mm/ 1.5”

Vacuum Port Inner Diameter: 32mm/1.26”

Compatible Machine: Genmitsu 4040-PRO, PROVerXL 4030, PROVerXL 4030 V2, PROVerXL 6050 Plus,3020-PRO MAX V2 and 3030-PROVer MAX and other CNC machines with 65mm or 69mm spindle motors.

Package List：

1 x φ69mm Dust Shoe

2 x φ65mm Gasket

1 x M4 Nuts

1 x M4*25 Allen Screw

1 x M4 Allen Key


This dust shoe is designed to help keep your work area clean while using the CNC machine for cutting, drilling, and carving operations.	The dust shoe fits a 65mm spindle motor with the gasket installed. By removing it, the dust shoe will fit a 69mm spindle motor.	The split design of the dust shoe makes it easy to replace cutting bits and worn brushes. Equipped with magnets and supports, it offers a stable structure and a more secure experience compared to other dust shoes.

Easy Installation

Install the Top Cover

Install the Top Cover of the dust shoe on the spindle with a M4x25 screws.

Install the Bottom Cover

Align the bottom cover with the top cover (3 tabs must be aligned) and the magnet will attach the bottom cover to the top cover.

Mounting on a 65mm Diameter Router

If you are using a 65mm router, you will need to add the gasket to the Top Cover and then install the dust shoe according to the above guide.
