DAC type
Dual Mode USB and Optical (SPDIF) wireless DAC
Outputs
RCA Stereo/Optical (SPDIF)
D/A converter
PCM1792A
Optical receiver
AK4117
Full-scale output
2.0V RMS
Output impedance
100 ohms
Power source
Included external supply
SNR
(DC to 20 kHz) >115dB
THD+N
(1kHz FS 96kS/s) <0.0015%
Crosstalk
<-85dB
Frequency response
10Hz-30KHz (+/- 0.5dB)
Wireless range (typical)
>100ft
Latency
<20ms
Product dimensions
4.75β5.5β1
Shipping weight
4lbs (2.0kg)
Shipping box dimensions
15x9x5
Environmental
Operating Temperature: 32 to 95 degrees F
Non-operating Temp: -4 to 113 degrees F
Relative Humidity: 5% to 95% non-condensing
Included accessories
RCA cable, 6.5ft
Power adapter with detachable AC cord
Microfiber bag
Setup Guide

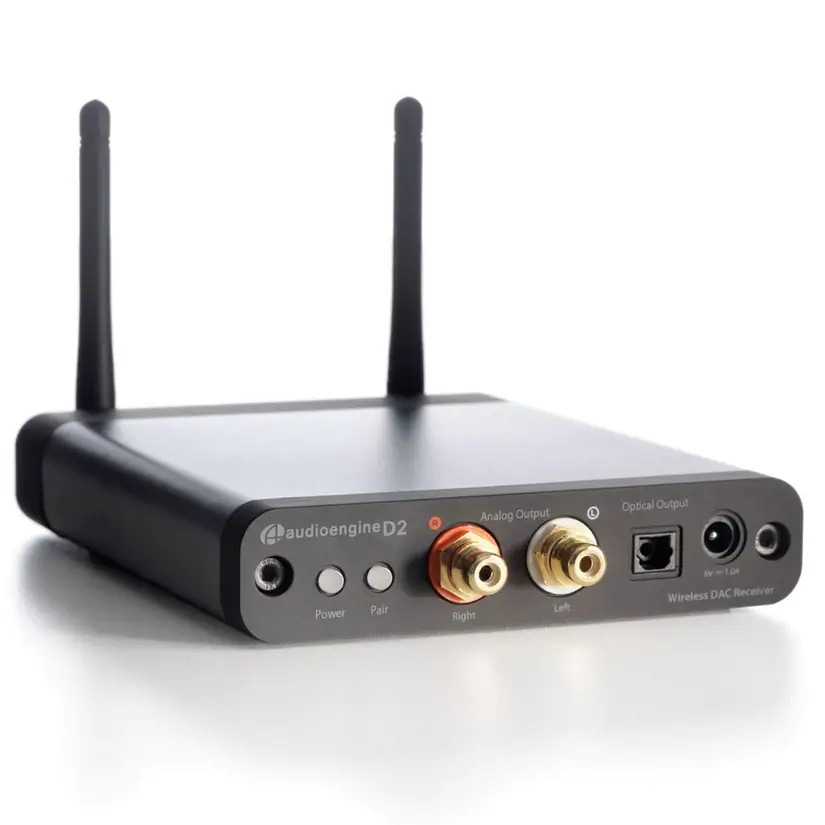

D2 DAC
The D2 Receiver utilizes the PCM1792 DAC, widely know for itβ’s low noise and high fidelity. Due to the PCM1792β’s high signal-to-noise specs and the added benefit of triple redundancy power source conversion and filtering, the D2 presents impressive low noise and low distortion characteristics. Β |
