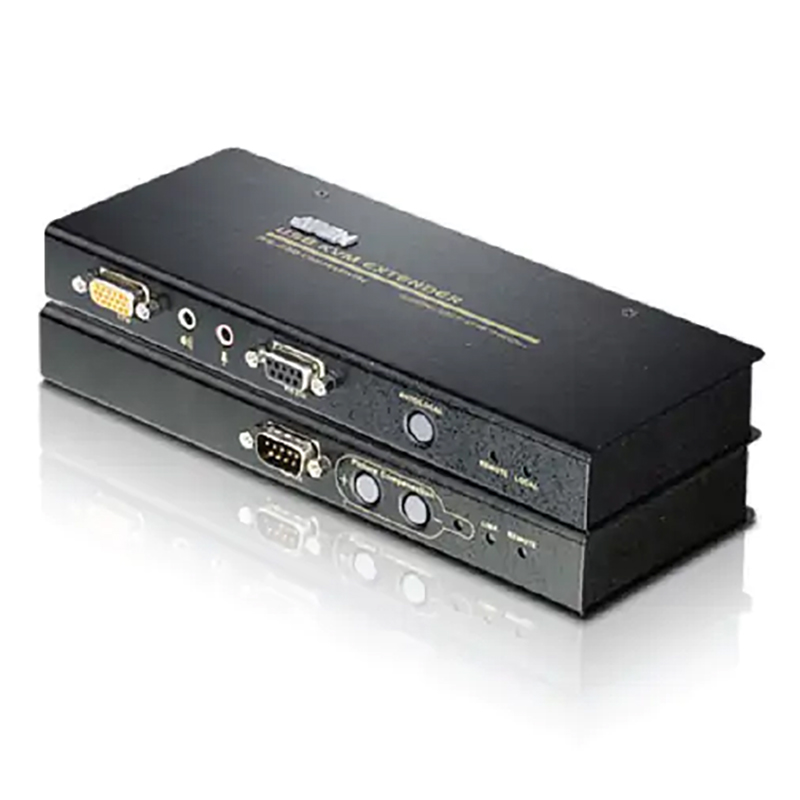

The CE750 is a USB based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the CE750 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location ?away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example.

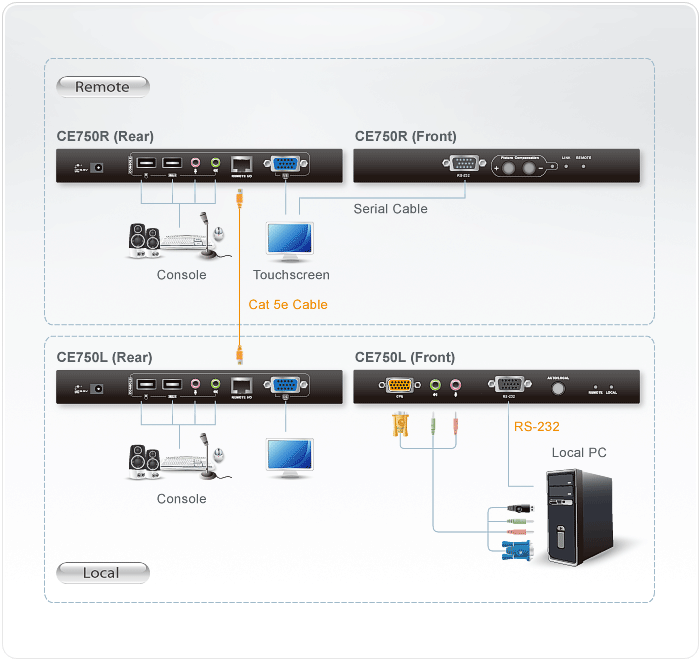

The CE750 improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)
Package Contents
1x USB KVM Extender (Local Unit)
1x USB KVM Extender (Remote Unit)
1x USB KVM Cable (1.8 m)
2x Power Adapters
1x Mounting Kit
1x User Instructions
Features
Local and Remote Units connect at distances up to 200 m using Cat 5e cable
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
USB Keyboard and USB Mouse Ports
RS-232 serial ports - allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)
Supports stereo speakers and stereo microphone
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) -select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Adjustable gain control - automatically and manually adjusts signal strength to compensate for distance
High resolution video - up to 1920 x 1200 @ 60 Hz (30m),1600 x 1200 @ 60 Hz (150m),1280 x 1024 @ 60 Hz (200m)
Supports Wide Screen formats *
Supports VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
Hot pluggable
Rack mountable
Easy to install - no software required - connecting cables to the devices is all it takes
Multiplatform support - Windows, Linux, FreeBSD
* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
Console Ports
Keyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green) MIC 1 x Mini Stereo Jack Female (Pink) Unit to Unit 1 x RJ-45 Female Power 1 x DC Jack
RS-232
CE750L: 1 x DB-9 Female (Black)
CE750R: 1 x DB-9 Male (Black)
KVM Ports
CE750L
Keyboard/ Video / Mouse 1 x SPHD-15 Female (Yellow) Speaker 1 x Mini Stereo Jack Female (Green) N/A MIC 1 x Mini Stereo Jack Female (Pink)
LEDs
CE750L
Local 1 (Green) Remote 1 (Green)
CE750R
Link 1 (Green) Picture Compensation 1 (Orange)
Pushbuttons
Operating Mode Selection CE750L 1 x Pushbutton Picture Compensation CE750R 2 x Pushbuttons
Emulation
Keyboard / Mouse USB
Video
1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m
Housing Metal Weight 0.49 kg Dimensions (L x W x H) 20.00x8.36x2.63cm
* Specifications are subject to change without notice. * Specifications may vary. * The product picture(s) is only for your reference, it may differ from the actual product.
