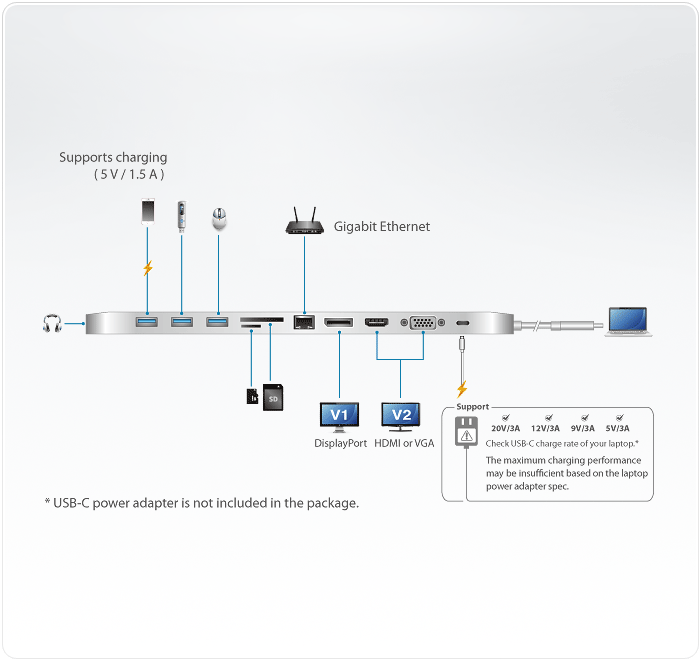

1 x USB 3.1 Gen1 Type A Female with BC1.2* 2 x USB 3.1 Gen1 Type A Female*
*The total output of 3 x USB 3.1 Gen1 Type A Female is 10W (5V/2A).
VIDEO OUTPUT
1 x DisplayPort Female 1 x HDMI Female 1 x VGA Female
LAN PORTS
1 x Gigabit Ethernet Female
AUDIO
1 x 3.5mm stereo 4-pole microphone and headphone jack
POWER
Supports USB Power Delivery 2.0 for laptop charging up to 60W, power profiles include 5V, 9V, 12V, 20V (additional USB-C power adapter needed)*
*Supports USB-C PD power adapter only, cannot work with USB-C QC power adapter.
FLASH MEMORY
1 x SD/SDHC/SDXC card slot* 1 x Micro SD/SDHC/SDXC (up to 128 GB) card slot*
*SD and Micro SD Card cannot be used at the same time; functionality accords to the order of insertion.
VIDEO RESOLUTION
Single-View :* DisplayPort - 3840 x 2160@30 HDMI - 3840 x 2160@30 VGA - 1920 x 1200@60
Dual-View :** DisplayPort/HDMI - 1920 x 1080@60 DisplayPort/VGA - 1920 x 1080@60
*With Intel 7th-Generation Core Processor (Kaby Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html For video output to work through a USB-C port, device with DP Alt Mode support is required. ** For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.
POWER CONSUMPTION
5V:15WBTU
OPERATING TEMPERATURE
0°C to 40°C (32°F to 122°F)
STORAGE TEMPERATURE
-10°C to 70°C (-4°F to 158°F)
HUMIDITY
10% to 90% relative humidity, non-condensing
HOUSING
Aluminum
WEIGHT
0.32 kg ( 0.7 lb )
DIMENSIONS (L X W X H)
28.00 x 7.50 x 1.45 cm (11.02 x 2.95 x 0.57 in.)
NOTE
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
