Aten Mini Cat5 VGA/Audio Extender

Aten Mini Cat5 VGA/Audio Extender
  • Display-Adapters-Aten-Mini-Cat5-VGA-Audio-Extender-4
  • Display-Adapters-Aten-Mini-Cat5-VGA-Audio-Extender-1
  • Display-Adapters-Aten-Mini-Cat5-VGA-Audio-Extender-2
$159.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 6hrs and 5mins

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Aten Mini Cat5 VGA/Audio Extender
  • Model Number:
    VE022-AT-U
  • Brand:
  • Warranty Period:
    1 Year

Description

Aten Mini Cat5 VGA/Audio Extender

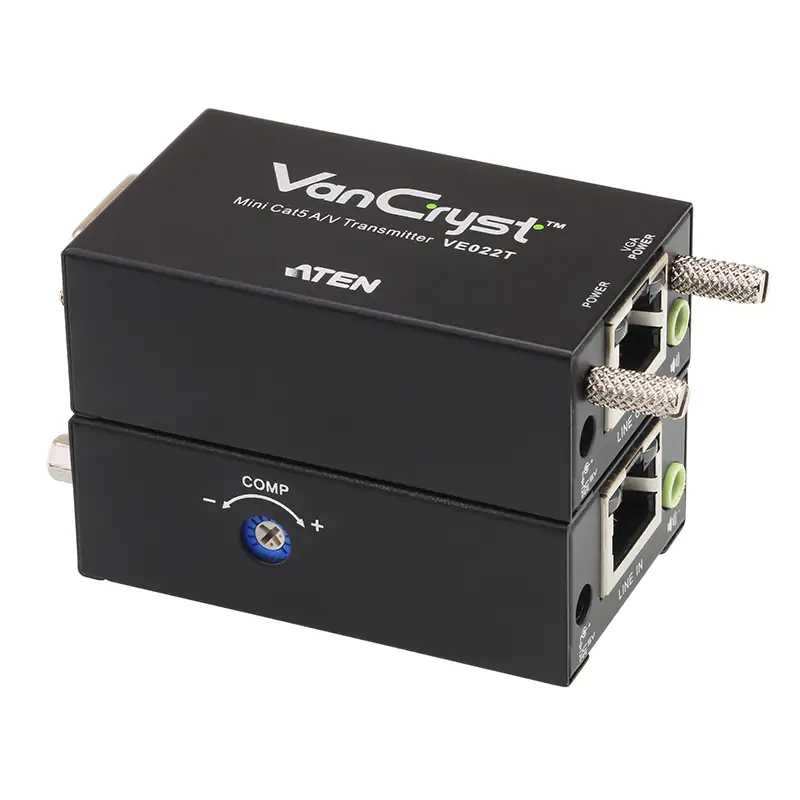

The VE022 Mini Cat 5 A/V Extender allows you to extend the distance between your video/audio source and display devices by as much as 150 meters, using a Cat 5e cable, providing an easy way to replace heavy and expensive VGA cables. With hot-plugging support, you can quickly add or remove the VE022 transmitter/receiver connected to the source/display device without having to power down devices.

The VE022 Mini Cat 5 A/V Extender is a compact, convenient and economical addition to your video/audio setup.


Features:

  • Uses Cat 5e cable to extend audio and video transmission up to 150 m

  • Superior video quality – screen resolutions include 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(100 m) and 1280 x 1024@60Hz(150 m)

  • Adjustable Gain Control lets you manually adjust signal strength to compensate for distance

  • Audio enabled (mono)

  • Convenient docking interface for mounting the VE022 on the display device.

  • Eliminates the need for bulky VGA cables

  • Easy installation






SPECIFICATIONS:


VE022R

VE022T

VIDEO INPUT

Interfaces

N/A

1 x HDB-15 Male (Black)

Impedance

N/A

75   Ω

VIDEO OUTPUT

Interfaces

1 x HDB-15 Female (Blue)

N/A

Impedance

75 Ω

N/A

VIDEO

Max. Bandwidth

300 MHz

300 MHz

Max. Resolutions / Distance

Up to 1920 x 1200@30m; 1280 x 1024@150m

Up to 1920 x 1200@30m; 1280 x 1024@150m

AUDIO

Input

N/A

1 x Mini Stereo Jack Female (Green)

Output

1 x Mini Stereo Jack Female (Green)

N/A

CONNECTORS

Power

1 x DC Jack

1 x DC Jack

Power Consumption

DC5V:0.95W:4BTU

DC5V:0.62W:3BTU

ENVIRONMENTAL

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

PHYSICAL PROPERTIES

Housing

Metal

Metal

Weight

0.05 kg ( 0.11 lb )

0.05 kg ( 0.11 lb )

Dimensions (L x W x H)

6.42 x 3.53 x 2.06 cm
(2.53 x 1.39 x 0.81 in.)

7.35 x 3.53 x 2.06 cm
(2.89 x 1.39 x 0.81 in.)

Carton Lot

20 pcs

20 pcs

Package Contents

1x VE022T Mini Cat 5 A/V Transmitter

1x VE022R Mini Cat 5 A/V Receiver

1x Power Adapter

1x VGA Cable (35 cm)

1x Audio Cable (40 cm)

1x Dock Mount kit

1x User Instructions

1x USB to DC Power Cord

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
